Switch Case

Overview

The Switch Case node routes an incoming value to one of three downstream paths. It evaluates a scripting expression and forwards the input through the output that matches the returned number.

Purpose

Use this node when a workflow needs three-way branching, such as low/medium/high priority, approved/pending/rejected, or one of three target systems.

The node does not transform the input payload. It only decides which output path receives it.

Configuration

Field	Description

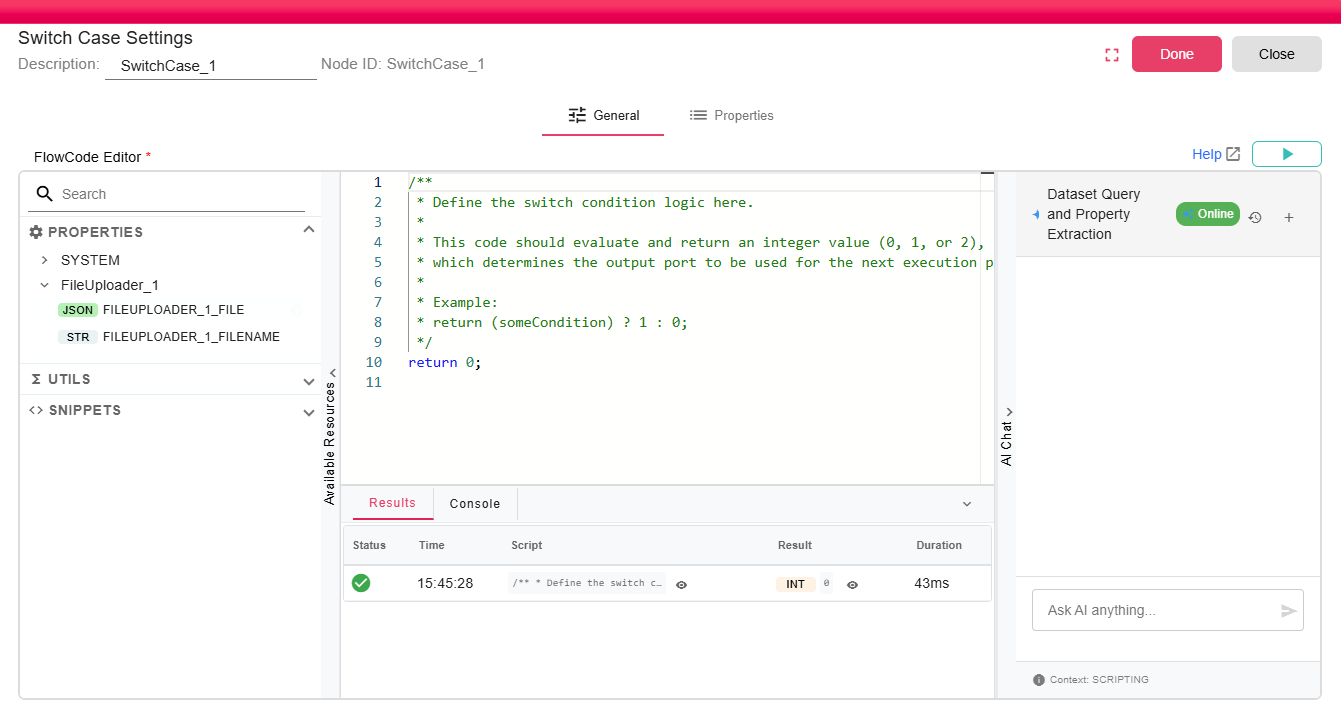

Code	Required scripting code. The code must return a numeric value that resolves to 0, 1, or 2.

The editor supports autocomplete resources, scripting snippets and utilities, and the scripting guide.

Inputs

Input	Data Type	Input Type	Description
Input	Any	Single	Any Input

Outputs

Output	Data Type	Collection	Description
Option0	Any	False	Output for value 0
Option1	Any	False	Output for value 1
Option2	Any	False	Output for value 2

Processing Logic

1. The node receives an input on the Input port.
2. The configured code is evaluated as a scripting expression.
3. Numeric results are converted to an integer when possible.
4. 0, 1, and 2 are routed to Option0, Option1, and Option2.
5. A result outside 0, 1, or 2 adds a warning and skips the node.

If the script returns null, execution fails with an error. If workflow execution is stopped while the script is running, the script evaluation is cancelled.

Examples

Route based on a status property:

var status = properties.get("ORDER_STATUS");
if (status == "NEW") {
  return 0;
} else if (status == "PENDING") {
  return 1;
} else {
  return 2;
}

Route based on a numeric threshold:

var amount = properties.get("INVOICE_AMOUNT");
if (amount > 10000) {
  return 2; // High value
} else if (amount > 1000) {
  return 1; // Medium value
} else {
  return 0; // Low value
}

For full scripting language documentation, see Scripting Overview.

Notes / Limitations

• The node is marked experimental.
• Only 0, 1, and 2 are valid routing results.
• If a selected output is not connected, routing to that option ends that branch.
• For two-way branching, use the If Else Condition node.
