Infor DataFabric Trigger

Overview

The Infor DataFabric Trigger polls Infor DataFabric for new data objects for a selected object name and starts workflow iterations with the changed data as a DataFrame.

Purpose

Use this trigger when a workflow needs to react to changes in an Infor DataFabric object and process the changed records as tabular data.

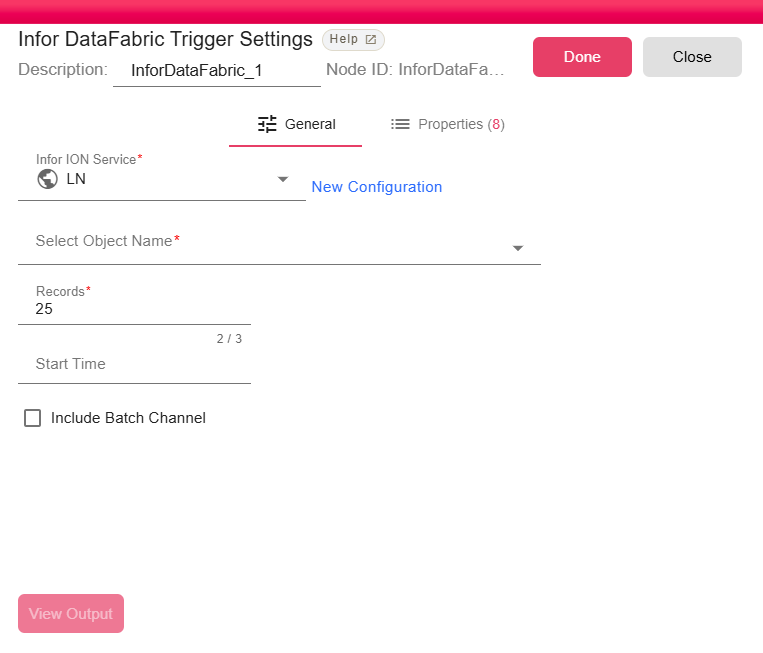

Configuration

Field	Description
Infor ION Service	Infor ION service used to access DataFabric. The service must have DataFabric access. For more, see Infor ION Service.
Select Object Name	DataFabric object to monitor. The list is loaded from the connected Infor environment.
Records	Maximum number of records to process per trigger activation. Defaults to 25.
Start Time	Optional start time in yyyy-MM-dd HH:mm:ss format. It is converted to UTC before querying DataFabric.
Include Batch Channel	Includes batch channel objects. When disabled, batch channel objects are skipped.

Outputs

Output	Data Type	Collection	Description
output	DataFrame	False	The trigger outputs a DataFrame containing records from the DataFabric object payload.

Properties

Property	FlowDataType	Description
DL_ID	String	Data object id.
DL_CHARSET	String	Character set used for the payload.
DL_DOCUMENT_NAME	String	DataFabric document name.
DL_LAST_TIME	String	Last stored event time before the current item.
VARIATION_FIELD	String	The field name which holds the variation number
ITEM_INDEX	Integer	The current item index being processed
ITEMS_TOTAL	Integer	The total items being processed in this batch
VARIATION_DATA_TYPE	String	The data type of the variation field

Processing Logic

The trigger queries DataFabric for the selected object name, using event_date as the incremental cursor. It retrieves data objects in ascending event date order, downloads and decompresses payloads when needed, validates or fetches the Data Catalog schema, converts each payload to a DataFrame, and stores the latest event date after successful non-manual processing.

Manual runs process a single stream-channel item and do not update the stored cursor.

Examples

Monitor CustomerParty to process customer changes or SalesOrder to trigger downstream order synchronization.

Notes / Limitations

• Start Time must use yyyy-MM-dd HH:mm:ss; invalid values stop the trigger with a configuration error.
• DataFabric objects from the ion channel are skipped.
• batch channel objects are skipped unless Include Batch Channel is enabled.
• Corrupt DataFabric objects emit an iteration warning after processing.
