File Listener (SharePoint)

Overview

The File Listener (SharePoint) trigger monitors a SharePoint document library and starts workflow iterations for new or changed files that match the configured path.

Purpose

Use this trigger when files arrive or change in SharePoint and must be downloaded into a workflow automatically.

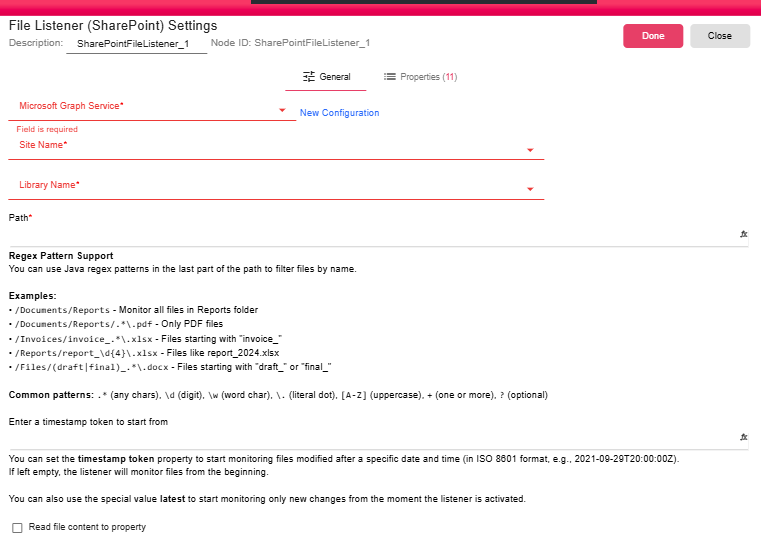

Configuration

Field	Description
Microsoft Graph Service	Service connection used to access SharePoint. For more, see Microsoft Graph Service.
Site Name	SharePoint site to monitor.
Library Name	Document library to monitor.
Path	Folder path within the library. The last path segment can be a Java regex pattern to filter file names.
Timestamp Token	Optional starting delta token. Use an ISO 8601 timestamp such as 2021-09-29T20:00:00Z, or latest to start from the current point.
Read file content to property	Stores supported file content in SHARE_POINT_FILE_LISTENER_CONTENT.

Outputs

Output	Data Type	Collection	Description
ChangedFile	NodeFile	False	The trigger outputs a NodeFile for each matching changed SharePoint file.

Properties

Property	FlowDataType	Description
SHARE_POINT_FILE_LISTENER_INFO	JsonNode	File metadata
SHARE_POINT_FILE_LISTENER_NAME	String	File name
SHARE_POINT_FILE_LISTENER_PATH	String	File path
SHARE_POINT_FILE_LISTENER_SIZE	Long	File size in bytes
SHARE_POINT_FILE_LISTENER_LAST_MODIFIED	Long	Last modified timestamp
SHARE_POINT_FILE_LISTENER_CREATED	Long	Created timestamp
SHARE_POINT_FILE_LISTENER_ITEM_ID	String	SharePoint item ID
SHARE_POINT_FILE_LISTENER_ETAG	String	ETag
SHARE_POINT_FILE_LISTENER_WEB_URL	String	Web URL
SHARE_POINT_FILE_LISTENER_DRIVE_ID	String	Drive ID
SHARE_POINT_FILE_LISTENER_CONTENT	String	The file content inside a property

Processing Logic

The trigger uses Microsoft Graph delta changes for the selected site, library, and path. It filters deleted items and folders, applies the optional regex to file names, downloads each matching file, and emits files sequentially. After a successful non-manual batch, it stores the delta token and clears processed item tracking.

Examples

• /Documents/Reports monitors all files in the Reports folder.
• /Documents/Reports/.*\.pdf monitors only PDF files.
• /Invoices/invoice_.*\.xlsx monitors Excel files starting with invoice_.
• /Reports/report_\d{4}\.xlsx matches files such as report_2024.xlsx.
• /Files/(draft|final)_.*\.docx matches Word files starting with draft_ or final_.

Notes / Limitations

• The regex applies to the file name portion after the monitored folder path.
• Manual runs do not commit the delta token.
• File content is only stored as a property when the option is enabled and the file type can be read safely.
